One of Chinese manufacturers of Prevailing Torque Type Hex Nuts Non-metalic, offering excellent quality at a competitive price, is DONGSHAO. Feel free to get in touch.
Hebei Dongshao Fastener Manufacturing Co., Ltd. is a well-known supplier and manufacturer of Prevailing torque type hex nuts non-metalic in China.

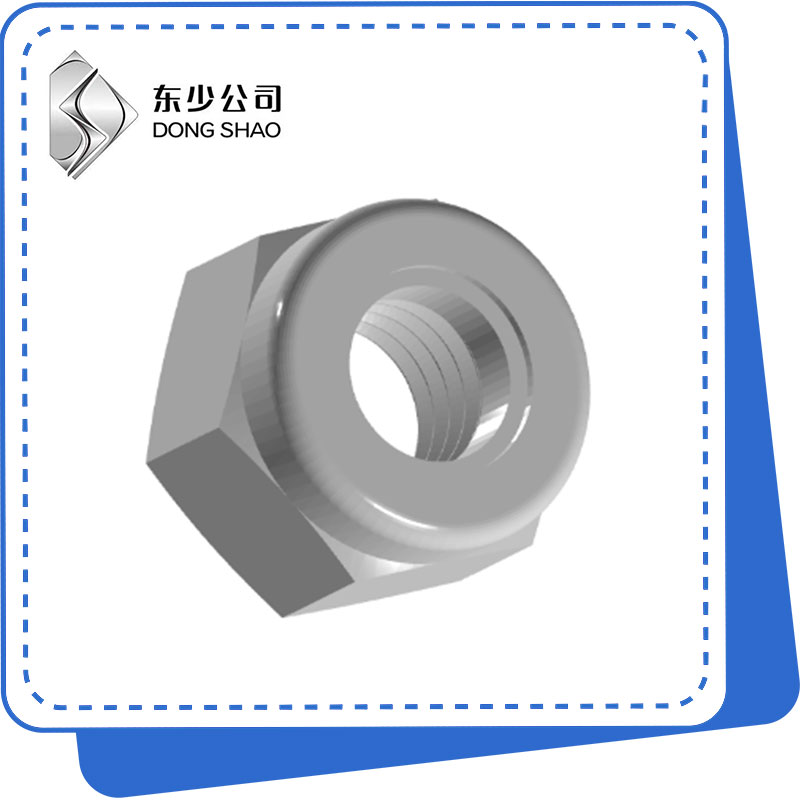

The Prevailing torque type hex nuts non-metalic is made of high quality synthetic material, which has good corrosion and heat resistance.Unique design, the use of non-metal insert production, reduce friction, increase the locking force.Easy to install, hexagonal flange head in line with industry standards, accurate opening position.
Prevailing torque type hex nuts non-metalic are widely used in various occasions to prevent nut loosening. For example, in the assembly process of mechanical equipment, in order to ensure the stability of the equipment, Prevailing torque type hex nuts non-metalic are often used. In addition, due to the good elasticity of nylon, mechanical properties are relatively good, while fatigue resistance, vibration absorption, even under the impact of lateral load, because the bolt and the thread extruded on the nylon ring closely match, eliminate the gap between the bolt and the nut, control the swing of the bolt, prevent its relative movement, so the nylon lock nut anti-vibration anti-loosening life is very high.
In general, the Prevailing torque type hex nuts non-metalic is a very practical loosening tool, its application range is very wide, can meet a variety of different needs.
(mm) | M8 | M10 | M12 | M14 | M16 | M20 | M24 | M30 | M36 |
P | 1 | 1|1.25 | 1.25|1.5 | 1.5 | 1.5 | 1.5 | 2 | 2 | 3 |
e min | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 32.95 | 39.55 | 50.85 | 60.79 |
h max | 9.5 | 11.9 | 14.9 | 17 | 19.1 | 22.8 | 27.1 | 32.6 | 38.9 |
h min | 8.92 | 11.2 | 14.2 | 15.9 | 17.8 | 20.7 | 25 | 30.1 | 36.4 |
k min | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 16.9 | 20.2 | 24.3 | 29.4 |
s max | 13 | 16 | 18 | 21 | 24 | 30 | 36 | 46 | 55 |
s min | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 29.16 | 35 | 45 | 53.8 |
