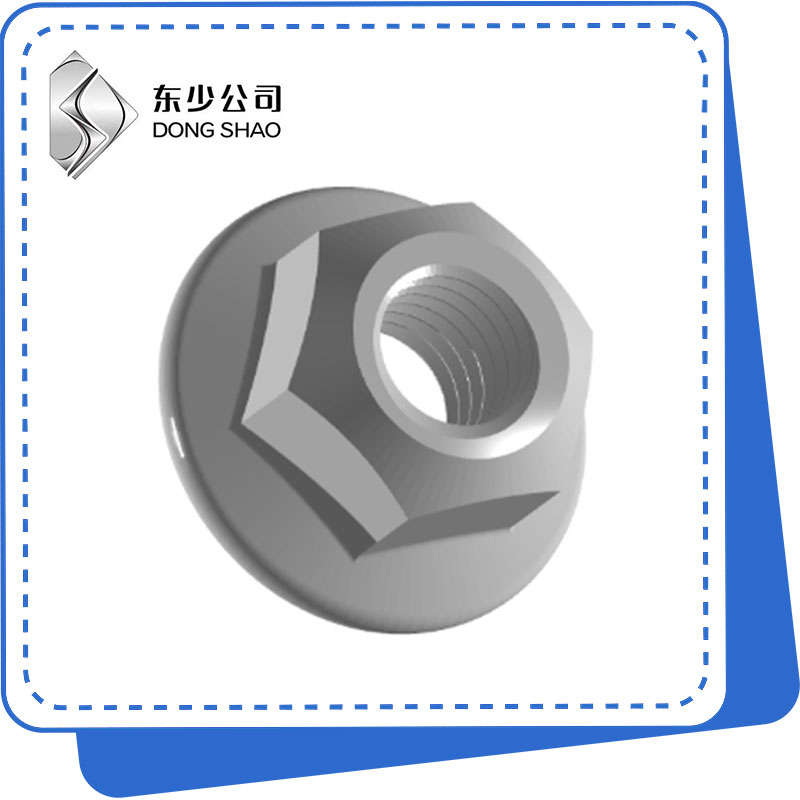

Welcome to wholesale or customized Prevailing Torque All-Metal Hex Flange Nuts Fine Thread from our factory at any time. We will provide you with factory discount prices for our products. DONGSHAO is Prevailing Torque All-Metal Hex Flange Nuts Fine Thread manufacturer and supplier in China.
Hebei Dongshao Fastener Manufacturing Co., Ltd. is a well-known supplier and manufacturer of Prevailing torque all-metal hex flange nuts fine thread in China.
Its Prevailing torque all-metal hex flange nuts fine thread are widely used, they are usually used in applications requiring higher precision and stronger sealing, such as in electronics, machinery, wind, hydraulic, automotive, sewing machines and new energy industries.
In these industries, Prevailing torque all-metal hex flange nuts fine thread are often used to connect various components to achieve stable fixation and reliable sealing. In addition, due to the good corrosion resistance and fatigue resistance of Prevailing torque all-metal hex flange nuts fine thread, they are also widely used in Marine engineering, aerospace and other fields.
In general, the Prevailing torque all-metal hex flange nuts fine thread is a very important fastener, its type and application range are very wide. When selecting and using this kind of nut, it is necessary to select the appropriate type and performance grade according to the specific use occasion and requirements.
(mm) | M8 | M10 | M12 | M14 | M16 | M20 |
P | 1 | 1|1.25 | 1.25|1.5 | 1.5 | 1.5 | 1.5 |
dc max | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 42.8 |
e min | 14.38 | 16.64 | 20.03 | 23.36 | 26 | 32.95 |
k max | 9.4 | 11.4 | 13.8 | 15.9 | 18.3 | 22.4 |
k min | 8.74 | 10.34 | 12.57 | 14.8 | 17.2 | 20.3 |
s max | 13 | 15 | 18 | 21 | 24 | 30 |
s min | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.16 |
