DONGSHAO is a professional leader China Wave Single Coil Spring Lock Washers manufacturer with high quality and reasonable price. Welcome to contact us.

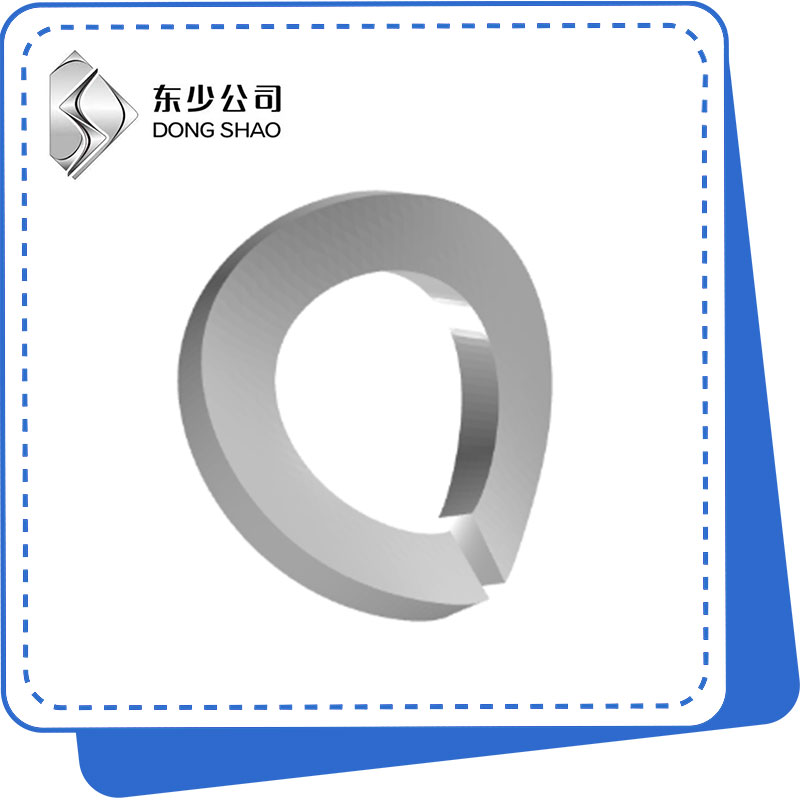

Hebei Dongshao Fastener Manufacturing Co., Ltd. is a well-known supplier and manufacturer of Wave single coil spring lock washers in China.
The Wave single coil spring lock washers made by the company has excellent elasticity and buffer performance, which can effectively absorb shock, absorb vibration and compensate the vibration and noise generated by the machine equipment in the movement.The Wave single coil spring lock washers increases its elasticity and adaptability through the design of the corrugated shape. It can adapt to different dynamic loads and temperatures during exercise, extending the service life.
We provide high quality Wave single coil spring lock washers, the material conforms to international standards, can meet the different performance and quality needs of customers, to ensure the quality and reliability of products.We offer a wide range of corrugated spring washers in various specifications and models, suitable for different mechanical equipment and industries, to meet customer needs.
(mm) | Φ3 | Φ4 | Φ5 | Φ6 | Φ8 | Φ10 | Φ12 | Φ14 | Φ16 | Φ18 | Φ20 | Φ22 | Φ24 | Φ27 | Φ30 |
d min | 3.1 | 4.1 | 5.1 | 6.1 | 8.1 | 10.2 | 12.2 | 14.2 | 16.2 | 18.2 | 20.2 | 22.5 | 24.5 | 27.5 | 30.5 |
d max | 3.4 | 4.4 | 5.4 | 6.68 | 8.68 | 10.9 | 12.9 | 14.9 | 16.9 | 19.04 | 21.04 | 23.34 | 25.5 | 28.5 | 31.5 |
H min | 1.1 | 1.2 | 1.5 | 2 | 2.45 | 2.85 | 3.35 | 3.9 | 4.5 | 4.5 | 5.1 | 5.1 | 6.5 | 6.5 | 9.5 |
H max | 1.3 | 1.4 | 1.7 | 22 | 2.75 | 3.15 | 3.65 | 4.3 | 5.1 | 5.1 | 5.9 | 5.9 | 7.5 | 7.5 | 10.5 |
h min | 0.52 | 0.7 | 1 | 1.2 | 1.5 | 1.9 | 2.35 | 2.85 | 3 | 3.4 | 3.8 | 4.3 | 4.8 | 5.3 | 5.8 |
h max | 0.68 | 0.9 | 1.2 | 1.4 | 1.7 | 2.1 | 2.65 | 3.15 | 3.4 | 3.8 | 4.2 | 4.7 | 5.2 | 5.7 | 6.2 |
b min | 0.9 | 1.1 | 1.4 | 1.9 | 2.35 | 2.85 | 3.3 | 3.8 | 4.3 | 4.8 | 5.3 | 5.8 | 6.7 | 7.7 | 8.7 |
b max | 1.1 | 1.3 | 1.6 | 2.1 | 2.65 | 3.15 | 3.7 | 4.2 | 4.7 | 5.2 | 5.7 | 6.2 | 7.3 | 8.3 | 9.3 |
