DONGSHAO is one of Square Bolts manufacturers and suppliers in China who can wholesale Square Bolts. We can provide professional service and better price for you. If you interested in Square Bolts, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
DONGSHAO is a proficient manufacturer and supplier of Square Bolts in China. If you're searching for the Square Bolts at an affordable price, get in touch with us right away!

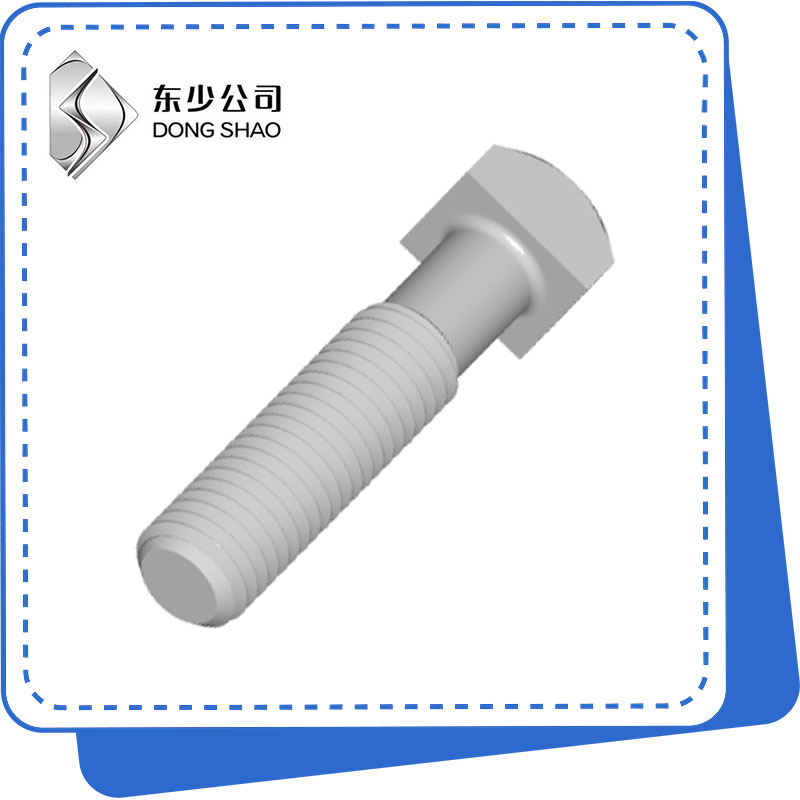

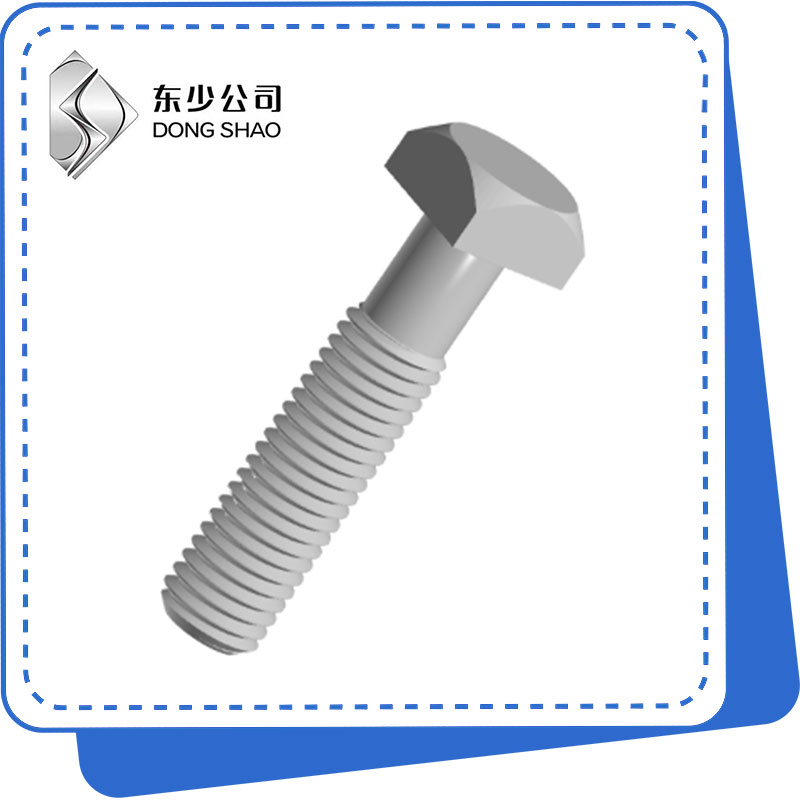

The square head bolt produced by the manufacturer has excellent surface treatment, oxidation resistance, corrosion resistance and long service life; Beautiful appearance, easy installation, strong fastening force.Square head bolts are widely used in a variety of electronic and electrical industries, water conservancy engineering industries, electrical products, mechanical equipment, chemical equipment
Prepare, ship, vehicle, bridge, steel structure and other occasions. Due to its large head, it is easy to fix and operate, so it requires large torque or needs to be prevented.It is widely used in loose occasions.In construction projects, square head bolts are often used in the role of embedded concrete as part of the foundation for fixing mechanical equipment. Besides, it
It is also widely used in various mechanical manufacturing processes for fastening two parts with through holes.In general, the square head bolt is a versatile, highly reliable fastener, its application in almost all industrial fields
(mm) | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M36 | M42 | M48 |
P | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 | 4.5 | 5 |
ds min | 9.03 | 10.86 | 12.70 | 14.70 | 16.38 | 18.38 | 20.38 | 22.05 | 25.05 | 27.73 | 33.40 | 39.08 | 44.75 |
ds max | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 36 | 42 | 48 |
e min | 20.24 | 22.84 | 26.21 | 30.11 | 34.01 | 37.91 | 42.9 | 45.5 | 52 | 58.5 | 69.94 | 82.03 | 95.03 |
k min | 6.55 | 7.55 | 8.55 | 9.25 | 11.1 | 12.1 | 13.1 | 14.1 | 16.1 | 17.95 | 21.95 | 24.95 | 28.95 |
k max | 7.45 | 8.45 | 9.45 | 10.75 | 12.9 | 13.9 | 14.9 | 15.9 | 17.9 | 20.05 | 24.05 | 27.05 | 31.05 |
rmin | 0.4 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1.2 | 1.6 |
s max | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 55 | 65 | 75 |
s min | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 53.8 | 63.1 | 73.1 |
