Find a huge selection of Slotted Pan Head Tapping Screws from China at DONGSHAO. Provide professional after-sales service and the right price, looking forward to cooperation.

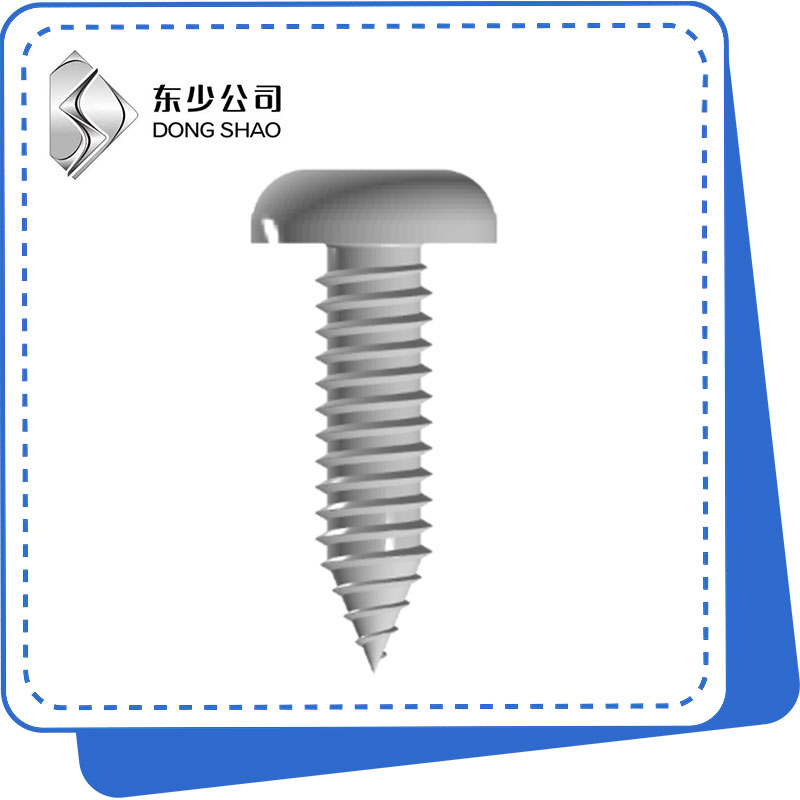

Hebei Dongshao Fastener Manufacturing Co., Ltd. is a well-known supplier and manufacturer of Slotted pan head tapping screws type C in China.
The Slotted pan head tapping screws is made of high quality material, the surface is specially treated, it is not easy to rust and oxidation, and the service life is long. A wide range of specifications for a wide range of installation needs. The design of the slotted pan head is convenient for the screw to cut in, so that the screw and the fixed object are closely fitted, and the fixing force is enhanced. It is more convenient to use the C-type self-tapping screw because it uses a special sharp Angle design, which can easily penetrate the wood, and then rotate the screw to fix itself without drilling in advance, which is more convenient and fast.
At the same time, our products have a smooth surface and are easy to clean and maintain. We also attach great importance to packaging and transportation, using moisture-proof, earthquake-proof, bacteria-proof materials to ensure that products will not be damaged during transportation. Our company has perfect after-sales service and high reputation, can provide customers with professional after-sales support and first-class shopping experience. Our price is reasonable, cost-effective, is the best choice for you to purchase Slotted pan head tapping screws type C.
(mm) | ST2.2 | ST2.9 | ST3.5 | ST4.2 | ST4.8 | ST5.5 | ST6.3 | ST8 | ST9.5 |
P | 0.8 | 1.1 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | 2.1 | 2.1 |
a max | 0.8 | 1.1 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | 2.1 | 2.1 |
da max | 2.8 | 3.5 | 4.1 | 4.9 | 5.5 | 6.3 | 7.1 | 9.2 | 10.7 |
dk max | 4 | 5.6 | 7 | 8 | 9.5 | 11 | 12 | 16 | 20 |
dk min | 3.7 | 5.3 | 6.6 | 7.6 | 9.1 | 10.6 | 11.6 | 15.6 | 19.5 |
k max | 1.3 | 1.8 | 2.1 | 2.4 | 3 | 3.2 | 3.6 | 4.8 | 6 |
k min | 1.1 | 1.6 | 1.9 | 2.2 | 2.7 | 2.9 | 3.3 | 4.5 | 5.7 |
n min | 0.56 | 0.86 | 1.06 | 1.26 | 1.26 | 1.66 | 1.66 | 2.06 | 2.56 |
n max | 0.7 | 1 | 1.2 | 1.51 | 1.51 | 1.91 | 1.91 | 2.31 | 2.81 |
r min | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.25 | 0.4 | 0.4 |
t min | 0.5 | 0.7 | 0.8 | 1 | 1.2 | 1.3 | 1.4 | 1.9 | 2.4 |
