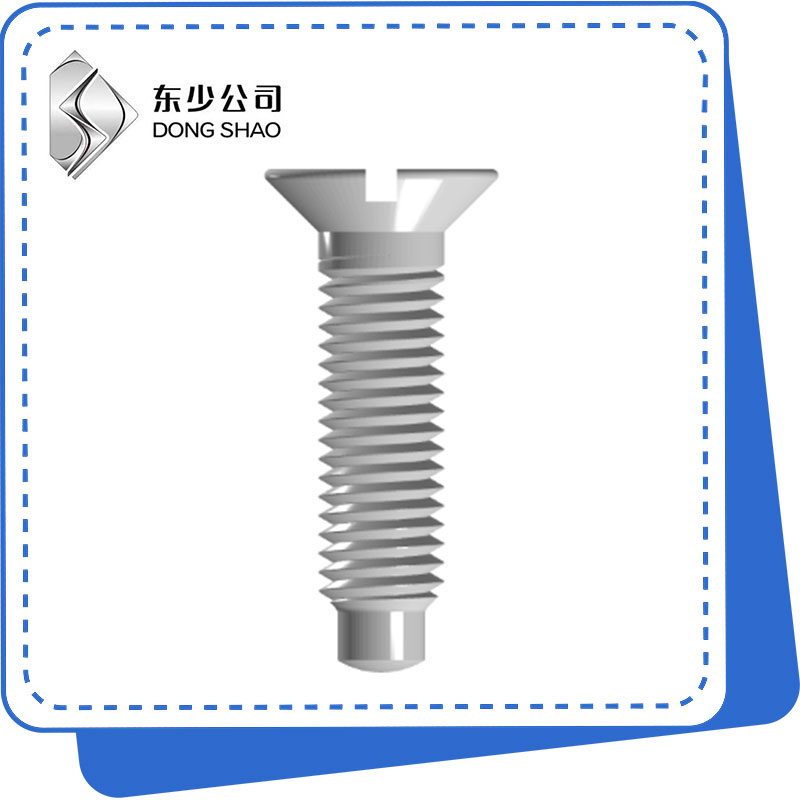

Slotted Countersunk Head Screws with Full Dog Point
  • Slotted Countersunk Head Screws with Full Dog PointSlotted Countersunk Head Screws with Full Dog Point

Slotted Countersunk Head Screws with Full Dog Point

As one of professional manufacturers, DONGSHAO would like to provide you high quality Slotted Countersunk Head Screws with Full Dog Point. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

Hebei Dongshao Fastener Manufacturing Co., Ltd. is a well-known supplier and manufacturer of Slotted countersunk head screws with full dog point in China.


The Slotted countersunk head screws with full dog point are made of high quality materials with smooth surface, corrosion resistance and long service life. A wide range of specifications for a wide range of installation needs. The long cylindrical end design of the product is convenient for the screw to cut in, so that the screw and the fixed object are closely fitted, enhance the fixed force, and the use is very convenient. The slotted part of our products has also been carefully processed, and the slotted design is convenient for the screw to cut in, so that the screw and the fixed object are closely fitted to enhance the fixing force.


At the same time, we pay attention to the beauty of the product and the processing of details, so that the appearance of our products is very beautiful. We also attach great importance to packaging and transportation, using moisture-proof, earthquake-proof, bacteria-proof materials to ensure that products will not be damaged during transportation.


In general, Slotted countersunk head screws with full dog point are a versatile fastener suitable for a variety of occasions that require firmly fixed parts. Its unique design enables it to provide strong fastening force while protecting the surface integrity of the locked part.


Product Parameter

(mm) M1.4 M1.6 M2 M2.5 M3
P 0.3 0.35 0.4 0.45 0.5
dk max 2.6 3 3.8 4.7 5.6
dk min 2.35 2.75 3.5 4.4 5.3
dp max 0.8 0.8 1.2 1.5 2
dp min 0.775 0.775 1.175 1.475 1.975
k max 0.84 0.96 1.2 1.5 1.65
n max 0.5 0.6 0.7 0.8 1
n min 0.36 0.46 0.56 0.66 0.86
t max 0.4 0.45 0.6 0.7 0.85
t min 0.28 0.32 0.4 0.5 0.6
