Hexagon Bolts for Flange Pipe

One of the Chinese companies offering Hexagon Bolts for Flange Pipe for wholesale is DONGSHAO. For you, we can offer better pricing and competent service. Should you be intrigued by Hexagon Bolts for Flange Pipe, kindly get in touch with us. We adhere to the standard of conscience-driven, committed service at the cost of quality assurance.OneWe adhere to the standard of conscience-priced, devoted service, so you can feel secure.

Send Inquiry

Product Description

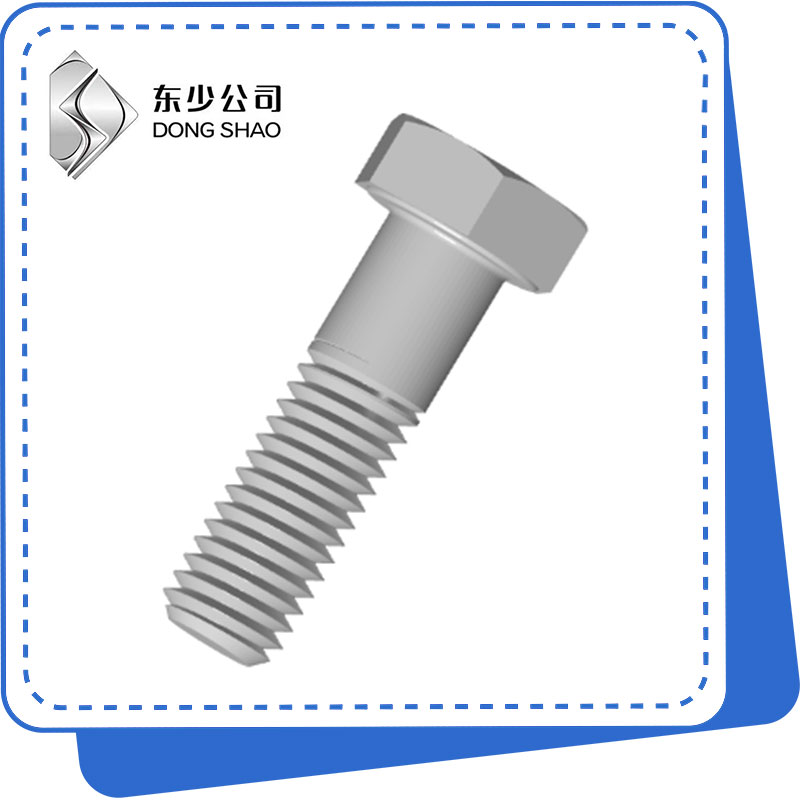

Hebei Dongshao Fastener Manufacturing Co., Ltd. is a well-known supplier and manufacturer of hexagon bolts for flange pipe in China.

The production of hexagon bolts for flange pipes has excellent material and surface treatment, oxidation resistance, corrosion resistance and long service life;Firm and stable, strong fastening force, to ensure long-term stability of the connecting parts;To prevent loosening, stainless steel lock nuts or elastic stop washers can increase the locking force to ensure that the connection is not loose.Complete specifications, can be selected according to the needs of different specifications, suitable for a variety of flange pipe connection occasions.

In terms of application, hexagon bolts for flange pipes mainly have the following aspects:Road and railway tunnel construction, engine and heavy machinery equipment, equipment fixation of embedded parts cement, etc

Product Parameter

(mm)	M10	M12	M14	M16	M20	M24	M27	M30	M33	M36	M39
P	1.5	1.75	2	2	2.5	3	3	3.5	3.5	4	4
da max	11.2	13.7	15.7	17.7	22.4	26.4	30.4	33.4	36.4	39.4	42.4
ds max	10	12	14	16	20	24	27	30	33	36	39
ds min	9.78	11.73	13.73	15.73	19.67	23.67	26.48	29.48	32.38	35.38	38.38
e min	17.77	20.03	23.36	26.75	33.53	39.98	45.2	50.85	55.37	60.79	66.44
k max	6.580	7.68	8.98	10.18	14.715	15.215	17.35	19.12	21.42	22.92	25.42
k min	6.220	7.32	8.62	9.82	12.285	14.785	16.65	18.28	20.58	22.08	24.58
r min	0.4	0.6	0.6	0.6	0.8	0.8	1	1	1	1	1
s max	16	18	21	24	30	36	41	46	50	55	60
s min	15.73	17.73	20.67	23.67	29.67	35.38	40	45	49	53.8	58.8
